TVS Jupiter Drum- OBD 2B
Detailed Specifications, Features & Ex-Showroom Price in India
₹ 76,543
Ex-Showroom Price
Engine / Motor
113.3 cc
Fuel Type
Petrol
Transmission
Automatic
Mileage / Range
53.84 kmpl
TVS Jupiter Drum- OBD 2B Technical Specifications
Click any category below to view detailed specifications
Fuel Type
Petrol
Engine Displacement
113.3 cc
Vehicle Style
Commuter
Seating Capacity
2 Persons
Max Power
7.91 bhp @ 6500 rpm
Max Torque
9.8 Nm @ 5000 rpm
Kerb Weight
105 kg
Warranty
5 year Years / 50000 km

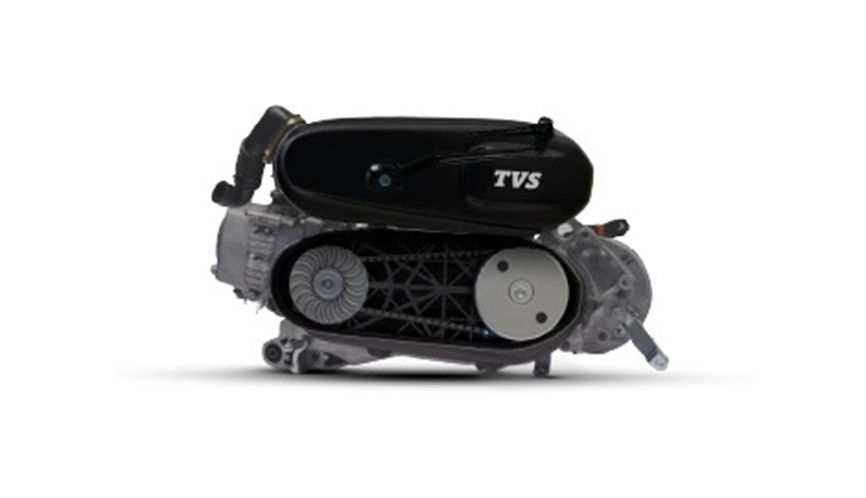

Engine Type
Single Cylinder
Displacement
113.3 cc
Number of Cylinders
1
Valves Per Cylinder
2 Valves
Max Power
7.91 bhp @ 6500 rpm
Max Torque
9.8 Nm @ 5000 rpm
Cooling System
Air Cooled
Fuel Supply
Electronic Fuel Injection (EFI)
Transmission / Gearbox
Automatic
Number of Gears
5 Speed
Official Mileage
53.84 kmpl
Fuel Tank Capacity
5.1 litres
Emission Standard
BS6 Phase 2B
Overall Length
1848 mm
Overall Width
665 mm
Overall Height
1158 mm
Wheelbase
1275 mm
Ground Clearance
163 mm
Seat / Saddle Height
765 mm
Kerb Weight
105 kg

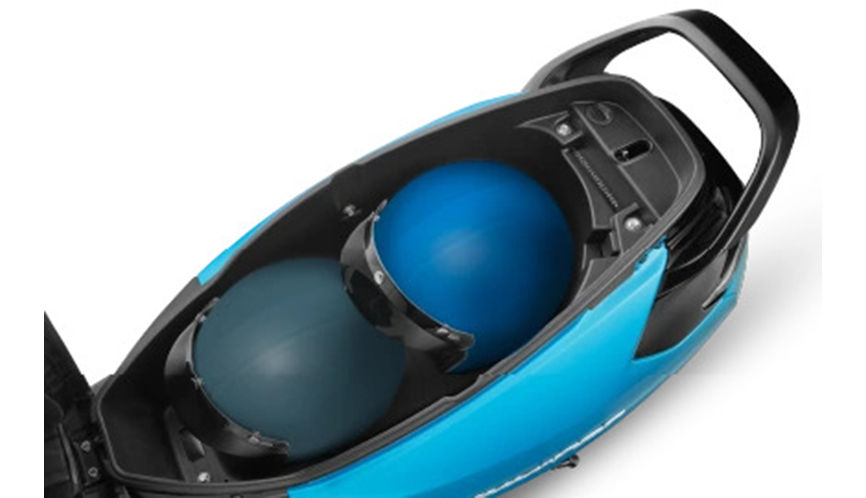

Under-seat Storage / Boot
33 litres
Front Suspension
Twin tube emulsion type shock absorber with 3 step adjustment
Rear Suspension
Hydraulic Dual Shock Absorbers / Monoshock
Chassis Frame Type
High Rigid Tubular Underbone Frame
Suspension Adjustability
Step Adjustable Preload
Front Brake Type
Drum
Front Brake Diameter
130 mm mm
Rear Brake Type
Drum
Rear Brake Diameter
130 mm mm
Wheel Type
Steel
Front Tyre Size
90/90 - 12
Rear Tyre Size
90/90 - 12
Tyre Type
Tubeless

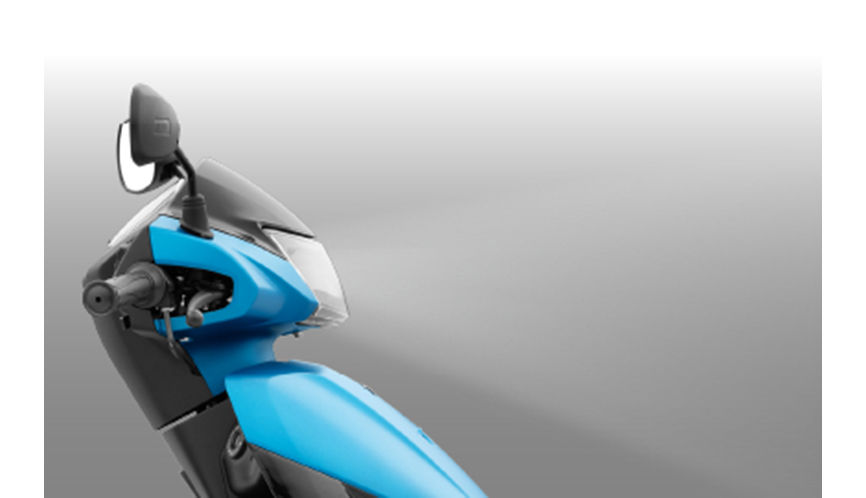

Headlight
LED
Tail Light
LED
Daytime Running Lights (DRLs)
Integrated LED DRLs
Turn Indicators
LED Clear Lens Indicators
Pass Light Switch
Available
Battery Voltage
12V Maintenance Free Battery
Braking Safety
NO
Digital Console
NO
Bluetooth Connectivity
Available
Internet / App Connectivity
NO
Turn-by-Turn Navigation
Supported
USB Fast Charging Port
Standard
Side Stand Engine Cut-off
Yes
Keyless Ignition / Push Button
Available
